JS Concrete Mixer

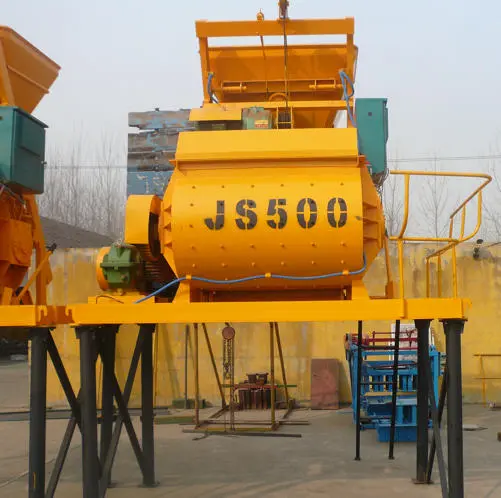

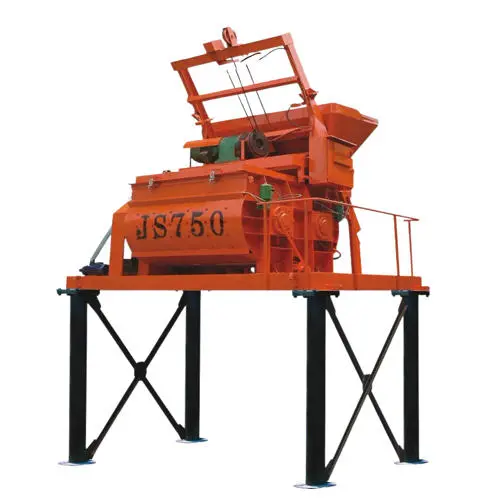

js concrete mixer JS concrete mixer 500 js 750 concrete mixer

JS Concrete Mixer

JS concrete mixer is more suitable for mixing large aggregate particle sizes, with high efficiency, stable performance,and durable structure, it ensures fast mixing speed and consistent concrete quality.
product description

Two Shaft JS Concrete Mixer for High Efficiency Concrete Block Production Line

JS concrete mixer is a two shaft forced concrete mixer designed for high-quality and uniform mixing. It is widely used in concrete batching plants for precast blocks, construction projects, and ready-mix concrete production.

A twin shaft concrete mixer with powerful dual-shaft system ensures fast and consistent mixing of cement, sand, aggregates, and water, making it an ideal choice for modern concrete block production lines. Stable concrete quality helps improve block strength, reduce material waste, and increase production efficiency.

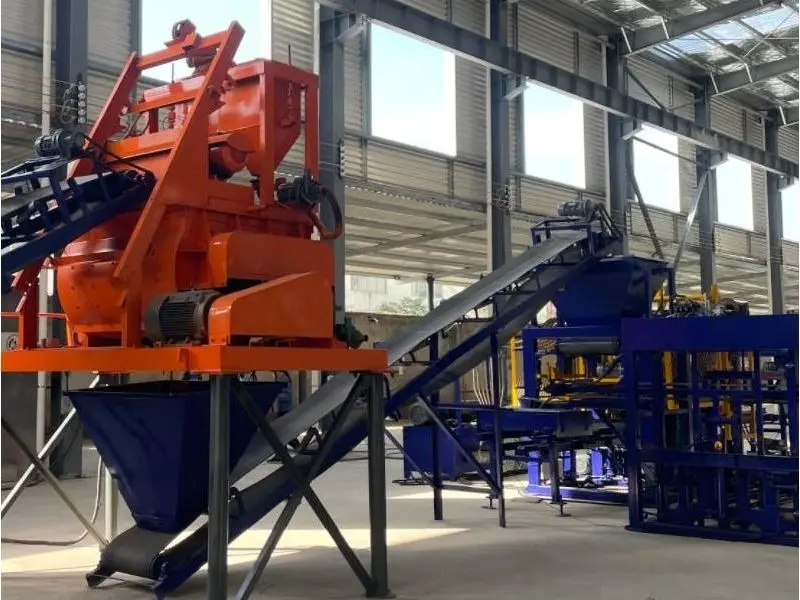

js concrete mixer for block production

When used as a concrete mixer for block making, the JS concrete mixer integrates perfectly with batching machines, conveyors, and automatic block making machines. It provides a continuous and reliable concrete supply for manufacturing hollow blocks, solid bricks, pavers, and curbstones. To see how our mixing equipment performs in a real production environment, explore our QT6-15 Concrete Block Machine Project in Uzbekistan project page.

Technical data:

 Model JS500 JS750 JS1000 JS1500
 Input Capacity 800L 1200L 1600L 2400L
output Capacity 500L 750L 1000L 1500L
 Productivity ≥25m³/h ≥35m³/h ≥50m³/h ≥75m³/h
 mixing vane quantity 2×7 2×7 2×8 2×10
 mixing vane rotation speed 35r/min 30.5 r/min 25.5 r/min 25.5 r/min
 Max/raw diameter material 80/60mm 80/60mm 80/60mm 80/60mm
 Mixing Motor Power 18.5kw 30kw 37kw 45kw
 Lifting Motor Power 5.5kw 7.5kw 11kw 18.5kw
 Water Pump Power 0.75kw 1.1kw 3kw 3kw
 Dimension (LxWxH) 4485x3030x5280mm 5980x2300x6260mm 8765x3436x9540mm 9645x3436x9700mm
 Total Power 24.75KW 38.6KW 51KW 66.5KW
