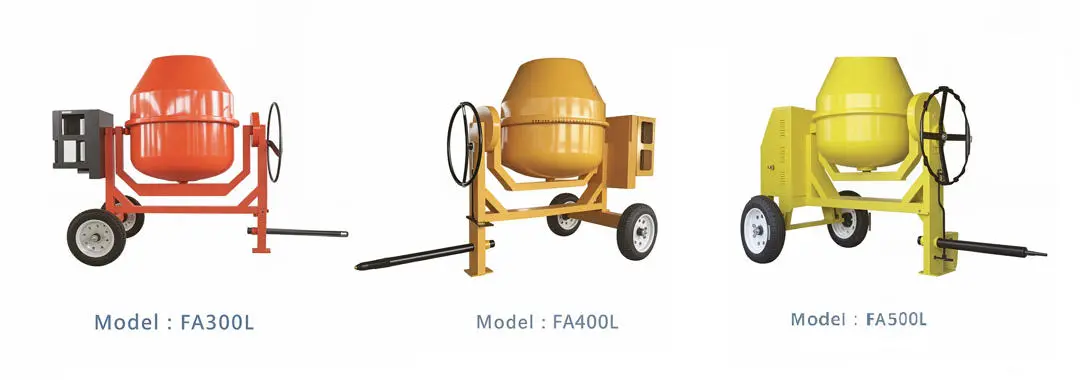

Mini-type movable concrete mixer
1.Cast iron gears ,steady and silent working ,spray painted surface,color as your request.
2.Diesel/gasoline/electric motor are options for this movable concrete mixer .
3.It has long life span. easy to move to different work place with wheels.
Specification:
| Model No. | 260L | 300L | 350L | 400L | 450L | |
| Movable Concrete Mixer | Drum Capacity | 260L | 300L | 350L | 400L | 450L |
| Drum Mouth | 450mm | 450mm | 516mm | 516mm | 516mm | |
| Drum Max.Dia. | 700mm | 700mm | 800mm | 800mm | 800mm | |
| Drum Height | 687mm | 777mm | 766mm | 851mm | 936mm | |
| RPM of Drum | 18-25 rpm | |||||
| Lower Drum Thickness | 4mm | |||||
| Upper Drum Thickness | 3mm | |||||
| Productivity | 2-5m³/h | 3-8m³/h | 4-10m³/h | 5-12m³/h | 6-14m³/h | |
| Dimension | 2645x1090x1336 | 2645x1090x1429 | 2800x1120x1436 | 2800x1120x1481 | 2800x1120x1549 | |
| Engine | Diesel engine | 6HP | ||||
| Gasoline engine | 6.5HP | |||||
| Electric motor | 1.5KW | 2.2KW | ||||
| Starting System | Recoil / Electric | |||||
| Unit Package | Net Weight | 240kg | 260kg | 270kg | 280kg | 290kg |
| Gross Weight | 280kg | 300kg | 310kg | 320kg | 330kg | |
| Package Size | 1835x810x1010 | 1835x810x1090 | 2030x910x1100 | 2030x910x1175 | 2030x910x1255 | |
| Container Loading | 20GP | 22 | 22 | 20 | 20 | 20 |
| 40HQ | 52 | 52 | 52 | 44 | 44 | |
| 500L | 600L | 700L | 800L | ||
| Movable Concrete Mixer | Drum Capacity | 500L | 600L | 700L | 800L |
| Drum Mouth | 566mm | 566mm | 600mm | 600mm | |
| Drum Max.Dia. | 900mm | 900mm | 1000mm | 1000mm | |
| Drum Height | 920mm | 1040mm | 1075mm | 1205mm | |
| RPM of Drum | 18-25 rpm | 18-25 rpm | 18-25 rpm | 18-25 rpm | |
| Lower Drum Thickness | 4mm | 4mm | 4mm | 4mm | |
| Upper Drum Thickness | 3mm | 3mm | 3mm | 3mm | |
| Productivity | 4-5m³/h | 5-6m³/h | 6-7m³/h | 7-8m³/h | |
| Dimension | 2879x1120x1616 | 2879x1120x1736 | 2960x1120x2000 | 2960x1120x2140 | |
| Engine | Diesel engine | 9HP | |||
| Gasoline engine | 9HP | ||||
| Electric motor | 3KW | ||||
| Starting System | Recoil / Electric | Recoil / Electric | Recoil / Electric | Recoil / Electric | |
| Unit Package | Net Weight | 330kg | 340kg | 400kg | 440kg |
| Gross Weight | 380kg | 390kg | 460kg | 500kg | |
| Package Size | 2070x1000x1400 | 2070x1100x1500 | 2110x1100x1500 | 2110x1150x1650 | |
| Container Loading | 20GP | 12 | 10 | 6 | 6 |
| 40HQ | 36 | 36 | 12 | 12 | |
